Traxtor Round Table Base

Features

• Stainless Steel grade 304 with hairline (matte) finish
• Suitable for both indoor and outdoor use
• Traxtor Base can be altered into a shorter base for Lounges or Stools

Material(s)

Stainless steel grade 304

Measurement(s)

TRAXTOR-RD380 in Dining Height

BASE: Dia380 x H730

Suitable for Laminate & Solid Wood Tops with the following dimensions:

Square  – 450 to 650

Round – 450 to 700

This table leg is not suitable for use on Stone Tops.

---

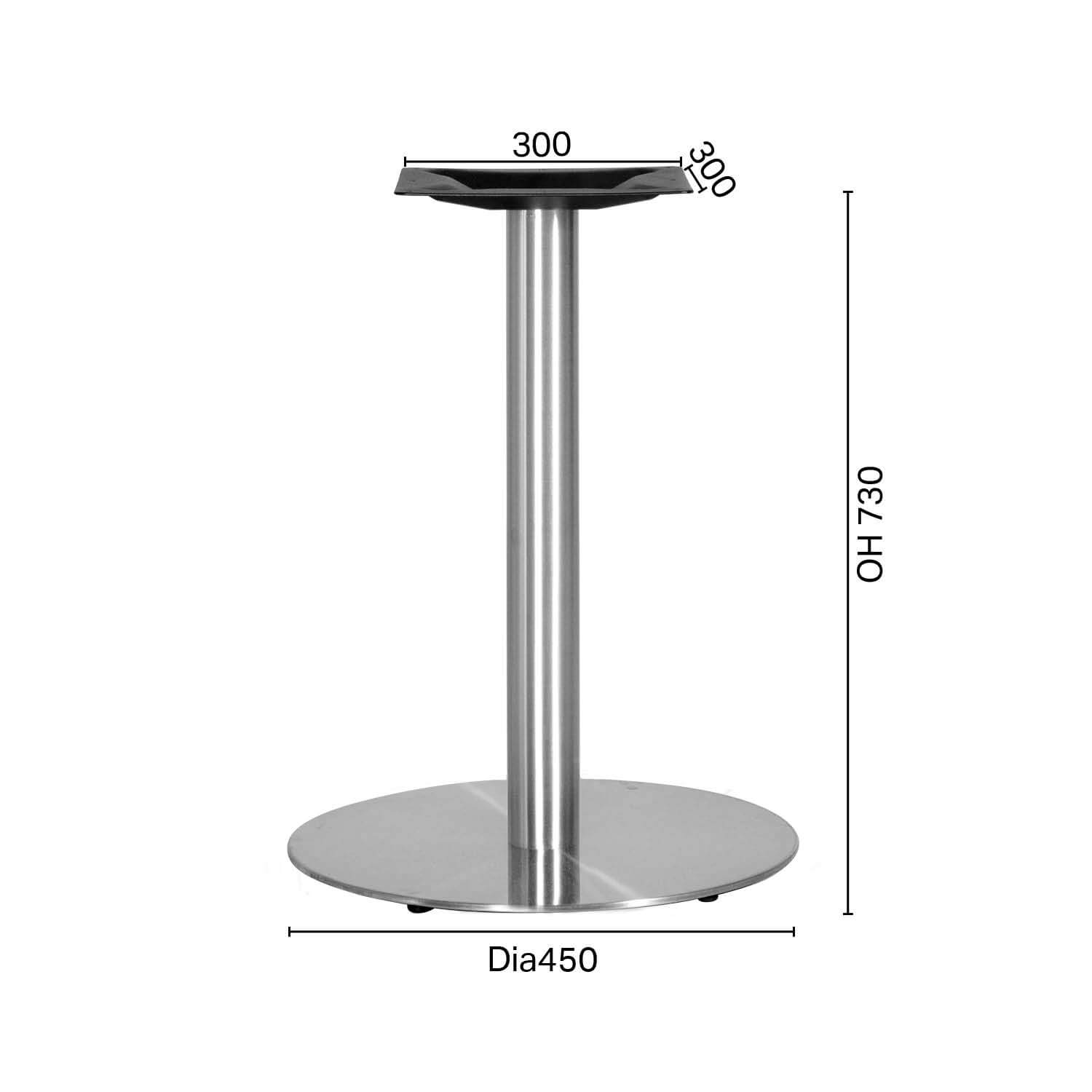

TRAXTOR-RD450 in Dining Height

BASE: Dia450 x H730

Suitable for Laminate & Solid Wood Tops with the following dimensions:

Square  – 500 to 700

Round – 500 to 800

Suitable for Stone Tops with the following dimensions:

Square  – 500 to 650

Round – 500 to 700

---

TRAXTOR-RD580 in Dining Height

BASE: Dia580 x H730

Suitable for Laminate Tops with the following dimensions:

Square  – 650 to 850

Round – 650 to 950

Suitable for Solid Wood Tops with the following dimensions:

Square  – 650 to 800

Round – 650 to 900

Suitable for Stone Tops with the following dimensions:

Square  – 650 to 700

Round – 650 to 800

---

TRAXTOR-RD830 in Dining Height

BASE: Dia830 x H730

Suitable for Laminate & Solid Wood Tops with the following dimensions:

Square  – 1000 to 1200

Round – 1000 to 1400

Suitable for Stone Tops with the following dimensions:

Square  – 1000 to 1100

Round – 1000 to 1200

---

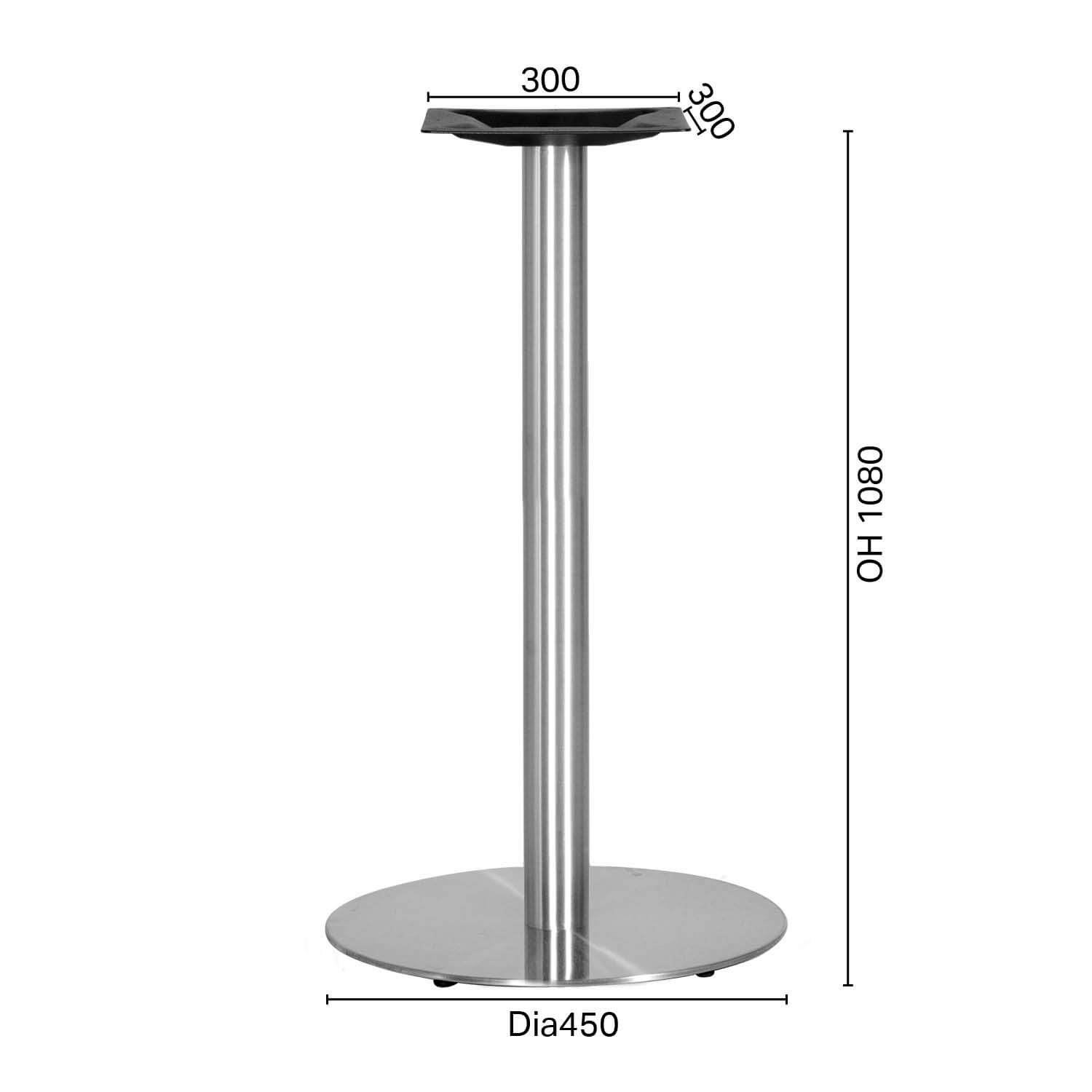

TRAXTOR-RD450 in Bar Height

BASE: Dia450 x H1080

Suitable for Laminate & Solid Wood Tops with the following dimensions:

Square  – 500 to 650

Round – 500 to 700

Suitable for Stone Tops with the following dimensions:

Square  – 500 to 600

Round – 500 to 650

---

TRAXTOR-RD580 in Bar Height

BASE: Dia580 x H1080

Suitable for Laminate, Solid Wood & Stone Tops with the following dimensions:

Square  – 600 to 650

Round – 600 to 700
